CHIHAN
ENARPL

Passive protection · Rapid deployment

Protection when fragmentation becomes the threat.

A flexible, vehicle-mounted aramid ballistic blanket designed to help reduce exposure to high-velocity fragments generated by drone-borne explosive threats.

Request product informationView specifications

Concept visualization. Final installation depends on vehicle and deployment configuration.

CHIHAN / ARAMID / 01
5 kg/m²Aramid areal density
21 kgNominal blanket weight
200 × 160 cmNominal coverage

A defined protection role

Not a drone interceptor. A passive fragmentation barrier.

The CHIHAN blanket does not detect, jam, capture or disable drones. It is positioned between vulnerable surfaces and the fragment path to provide flexible, rapidly deployable protection during a fragmentation event.

01

Threat event

A drone-borne explosive device detonates and produces high-velocity fragments.

02

Protective layer

Multilayer aramid is secured across exposed vehicle or asset surfaces.

03

Risk reduction

The flexible barrier helps mitigate fragment penetration under applicable threat and test conditions.

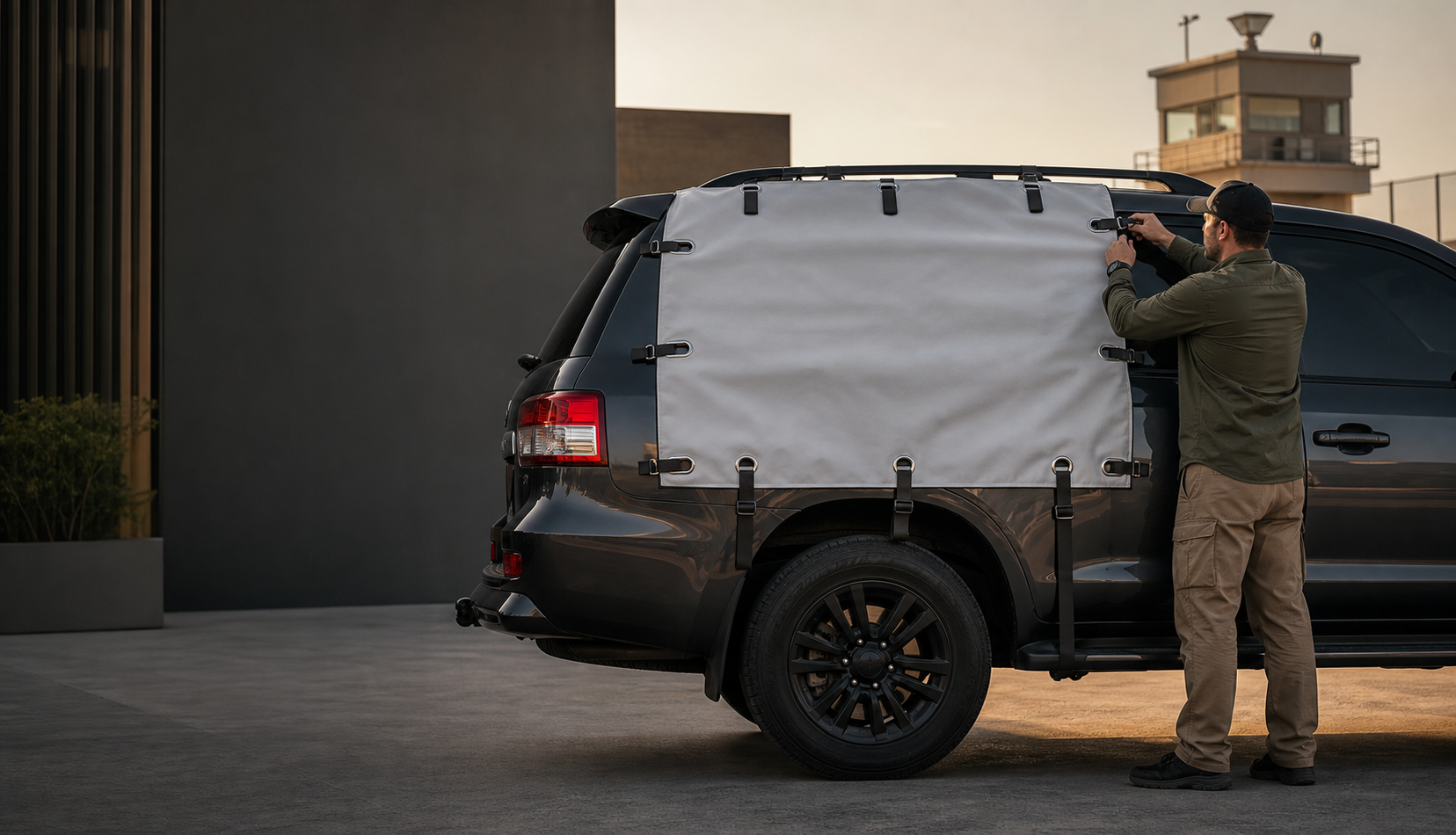

Vehicle installation conceptVehicle installation concept

Built for operational flexibility

Deploy around the asset, not around a fixed structure.

A flexible format, reinforced perimeter and multiple attachment points support temporary vehicle and field configurations where rigid armour may be impractical.

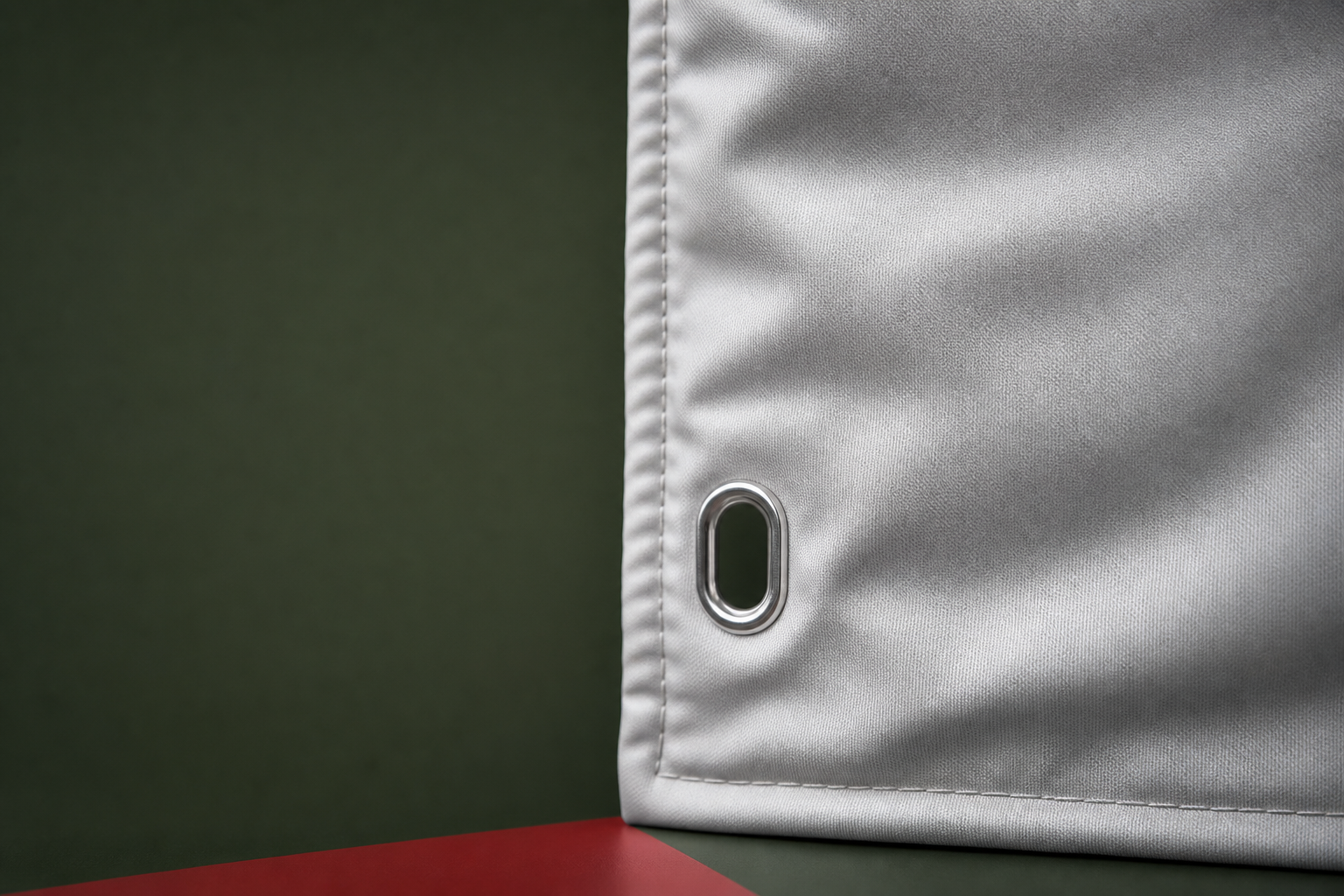

Reinforced blanket edge and metal eyelet concept detail

Construction highlights

  • Multilayer high-density aramid ballistic core
  • 1500D polyester Oxford outer shell with protective coating
  • Water-resistant TPU-coated polyester inner shell
  • Reinforced stitched perimeter with multiple metal attachment eyelets

Technical overview

Procurement-ready baseline specifications.

Product
Aramid Ballistic Protection Blanket
Nominal size
200 × 160 cm (±5 cm)
Nominal weight
21 kg (±1 kg)
Aramid areal density
5 kg/m² (±0.2 kg/m²)
Outer shell
1500D polyester Oxford fabric with protective coating
Inner shell
TPU-coated polyester, water resistant
Configuration
Flexible blanket with reinforced attachment eyelets
Documentation
Technical and V50 documentation available for qualified review
Controlled technical disclosure

Evidence shared through a controlled review.

Detailed ballistic test records are internal documents. Qualified government, security, integration and distribution partners may request controlled technical review for procurement evaluation.

Priority markets

Regional support for focused procurement conversations.

CHIHAN is a Canadian supplier supporting security and distribution partners in the Middle East and Poland.

UAE

Dubai, United Arab Emirates

Security integrators, vehicle protection and regional distribution

KSA

Saudi Arabia

Fleet protection, critical assets and project procurement

OMN

Oman

Remote operations, infrastructure and equipment protection

POL

Poland

Technical evaluation, vehicle integration and European distribution

!

Clear scope of protection

  • Passive protection only; no drone detection, jamming or interception capability.
  • Performance depends on fragment type, impact velocity, coverage, installation and test conditions.
  • The blanket is not presented as protection against blast overpressure.

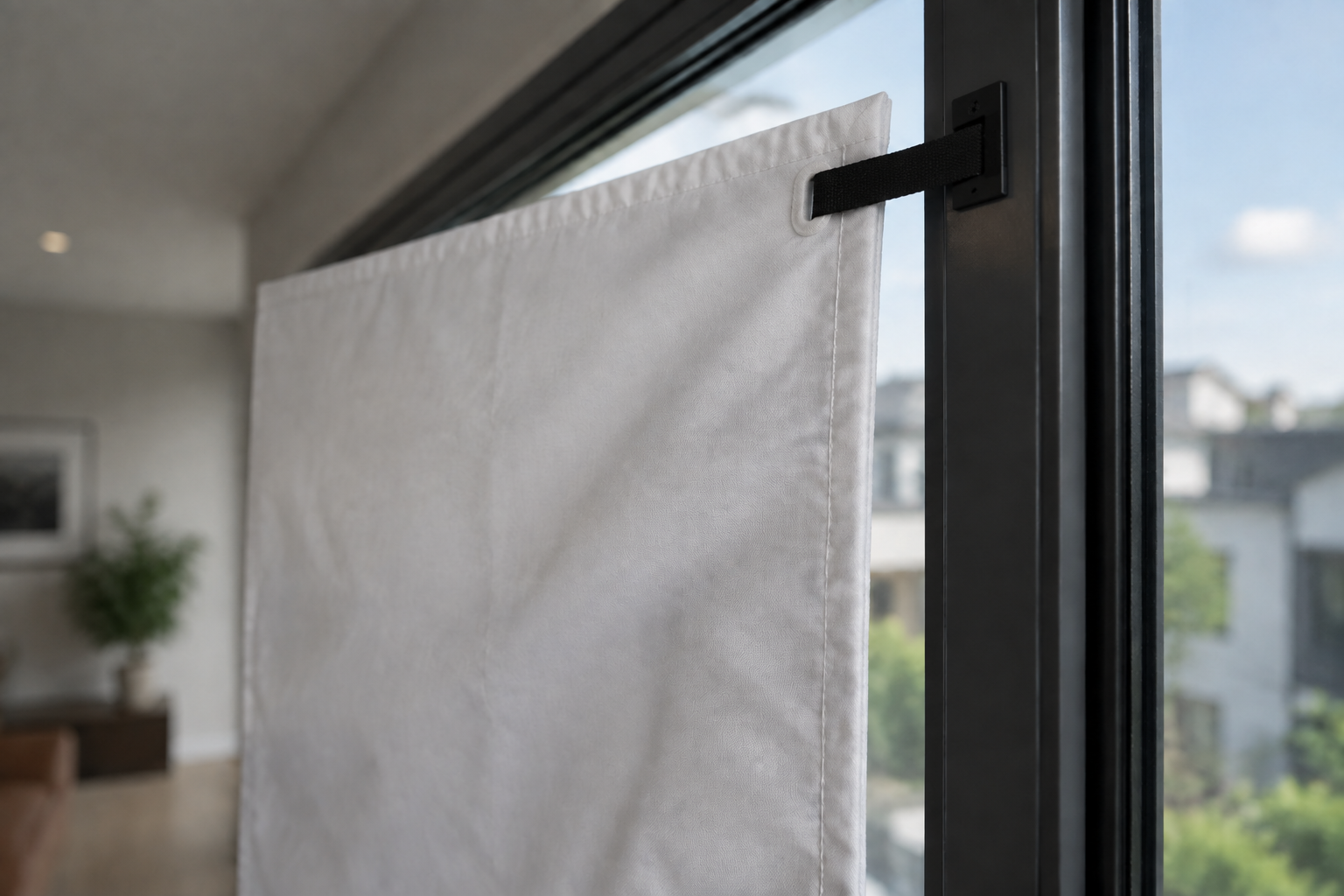

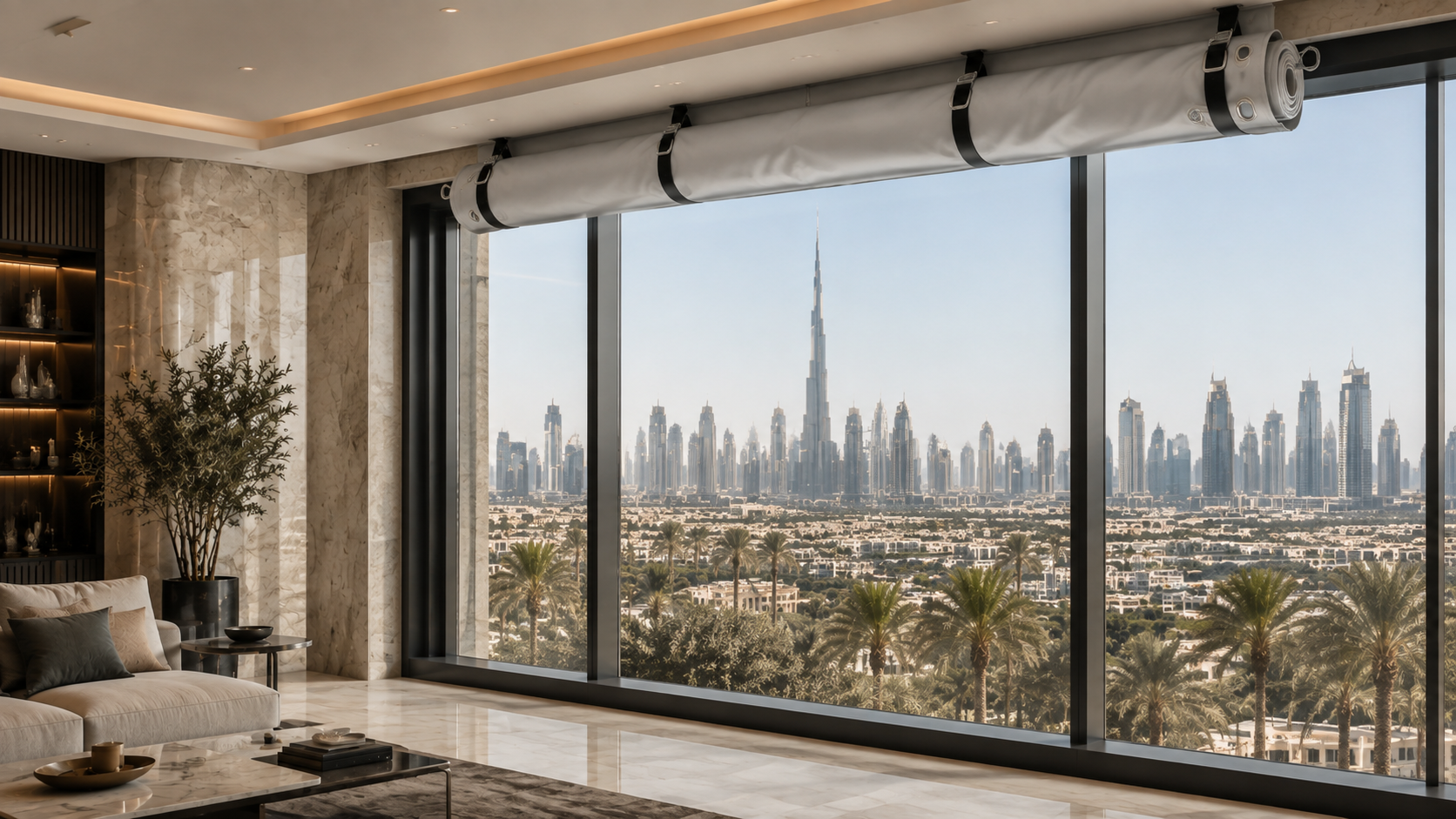

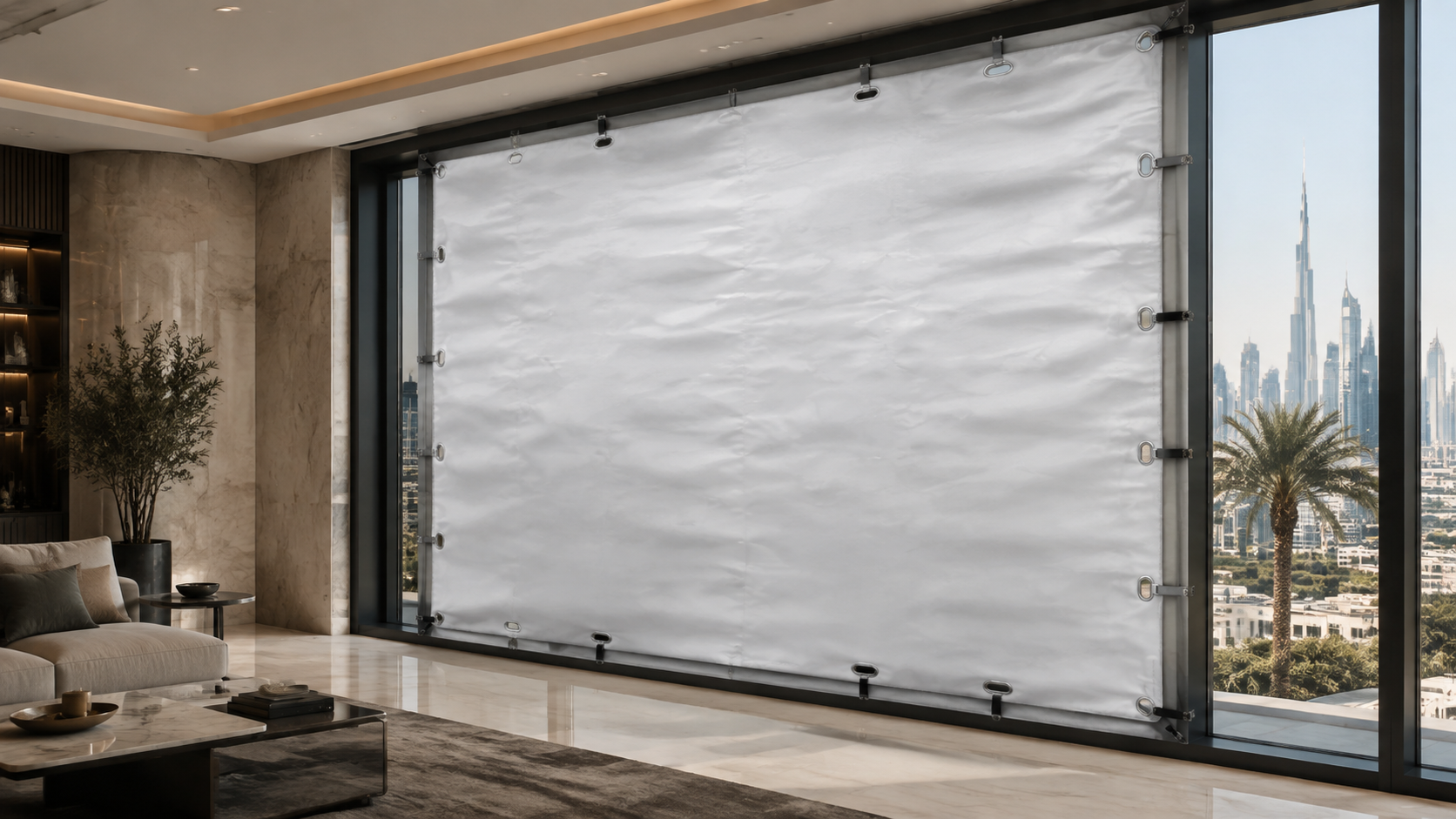

  • Installation concepts shown are AI-generated visualizations and are not customer deployments.

Start a technical conversation

Request specifications for your vehicle or deployment scenario.

Tell us your target market, intended configuration, required quantity and procurement documentation needs. Our team will respond by email.
